    Product
    Industrial Metallurgical Microscope Now:Home > Product > Industrial Metallurgical Microscope
    X151-100、 X151-50 、X151-40 、X151-20

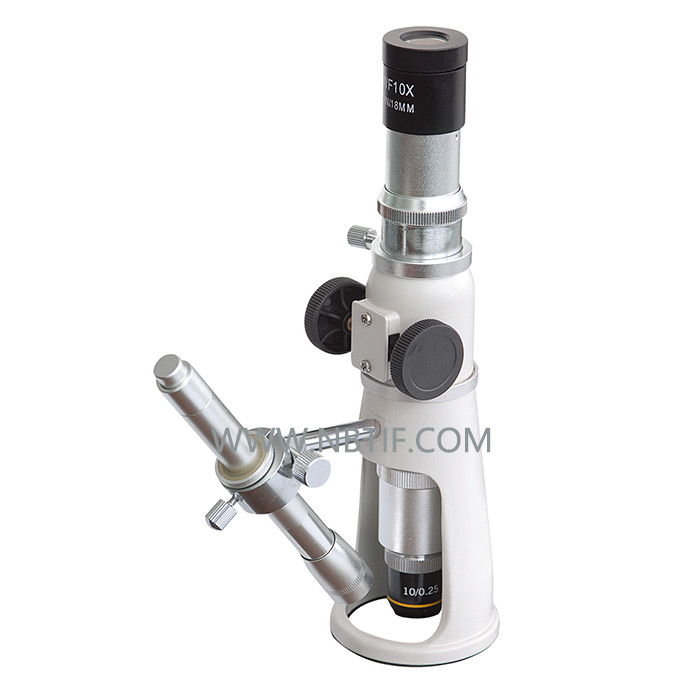

    Portabele Measuring Microscope
    It is widely used in spot inspecting and measuring in the factory and observation and research in Laboratory.It is specially suitabel for production locale inspecting for mechanical,paper making manufacture and print,textile industry,etc.This product is small and exquisite,novel designed and exquisite,novel designed and operation easy,also suitable for student’s experiment.
    Specification
    Model
    X151-100
    X151-50
    X151-40
    X151-20
    Total Magnification
    100X
    50X
    40X
    20X
    Mechanical Tube Length
    160mm
    Objective Magnification
    10X
    5X
    4X
    2X
    Numerical Aperture(N.A.)
    0.25
    0.12
    0.10
    0.05
    Working Distance(mm)
    7
    18
    18
    18
    Eyepiece
    WF10X,crosshair with reticule 0 1mm
    Focusing Range
    30mm
    Diameter of Viewing field in Eyepiece
    ¢18mm
    Diameter of base
    ¢63mm
    Height of Micriscope
    210mm
    Weight of Micriscope
    0.65kg
    lllumination
    The pen type lamp,use2X7battery
    Lnstrument size
    143mmX63mmX210mm
